AC1750
Wireless

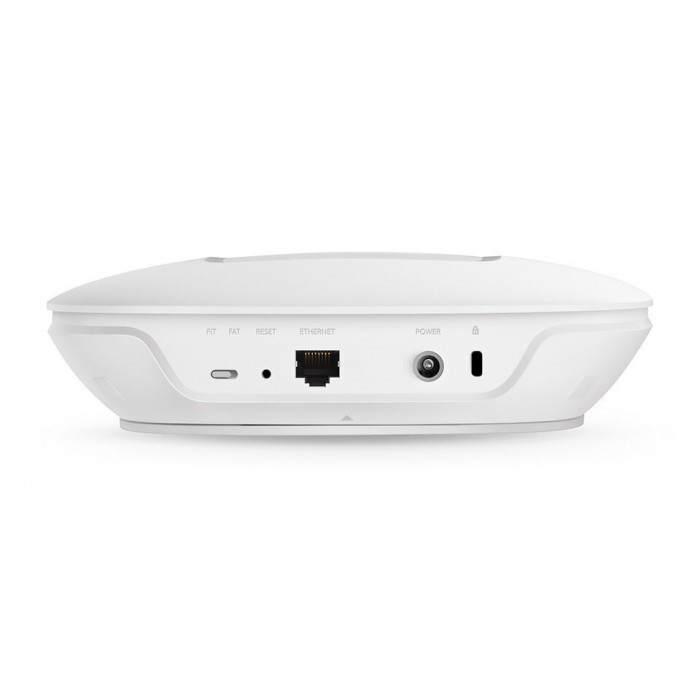

Dual Band Gigabit Ceiling Mount Access Point CAP1750HARDWARE FEATURESInterfaceGigabit Ethernet (RJ-45) Port *1 (Support IEEE802.3at PoE)ButtonReset, FIT/FATPower SupplyPoE or external 12VDC/1.5A power supplyPower Consumption12.7W
Dimensions
( W x D x H )7.1 x 7.1 x 1.9 in. (180*180*47.5mm)Antenna Type2.4GHz 3*4dBi5GHz 3*4BiMountingCeiling /Wall Mounting (Kits included)Physical Security LockKensington Lock SlotWatch DogYesWIRELESS FEATURES
Wireless
StandardsIEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11aFrequency2.4GHz and 5 GHzTransmit PowerCE:<19dBm(2.4GHz)<23dBm(5GHz)FCC:<25dBm(2.4GHz)<27dBm(5GHz)SOFTWARE FEATURES
Wireless
FunctionsMultiple SSIDs (Up to 16 SSIDs)Automatic Channel AssignmentTransmit Power Control (Adjust Transmit Power on dBm)WDSMaximum Client Connections Setting
Wireless
SecurityGuest
Network
Wireless
MAC Address Filtering
Wireless
Isolation Between ClientsSSID to VLAN MappingWPA / WPA2-Enterprise,WPA-PSK / WPA2-PSKSOFTWARE FEATURE IN FAT MODE
Wireless
FunctionsMultiple SSIDs (Up to 16 SSIDs)Automatic Channel AssignmentTransmit Power Control (Adjust Transmit Power on dBm)WDSMaximum Client Connections Setting
Wireless
SecurityGuest
Network
Wireless
MAC Address Filtering
Wireless
Isolation Between ClientsSSID to VLAN MappingWPA / WPA2-Enterprise,WPA-PSK / WPA2-PSKSOFTWARE FEATURES IN FIT MODE
Wireless
FunctionsMultiple SSIDsAutomatic Channel AssignmentTransmit Power Control (Adjust Transmit Power on dBm)WMMReboot Schedule
Wireless
Statistics based on SSID/AP/ClientLoad BalanceBand Steering
Wireless
SecurityCaptive Portal AuthenticationMAC Address Authentication
Wireless
Isolation Between ClientsSSID to VLAN MappingWPA / WPA2-Enterprise,WPA-PSK / WPA2-PSKOTHERSCertificationCE, FCC, RoHSPackage ContentsAC 1750
Wireless
Dual Band Gigabit Ceiling Mount Access Point CAP1750Power AdapterMounting Kits,Installation GuideSystem RequirementsMicrosoft Windows 10/8/7/Vista/XPEnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉)
Storage
Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% non-condensing
Storage
Humidity: 5%~90% non-condensing
Warranty
Limited 3-Year
Warranty
GTIN Number:845973096663
