Description
Model
RG-RAP2260(G)Hardware specificationsRadioDual-stream dual-bandProtocolConcurrent 802.11ax, 802.11ac wave2/wave1, 802.11a/b/g/nOperating Bands802.11b/g/n/ax ：2.4G ~ 2.4835GHz802.11a/n/ac/ax ： 5G：5.150～5.350GHz，5.725～5.850GHz (country specific)AntennaInternal antennas（2.4G: 3dBi，5G: 3dBi）Spatial Streams2.4G 2x2MIMO 5G 2x2MIMOMax ThroughputUp to 574Mbps at 2.4GUp to 1201Mbps at 5G1.775Gbp per APModulationOFDM：BPSK@6/9Mbps，QPSK@12/18Mbps，16QAM@24Mbps，64QAM@48/54Mbps DSSS：DBPSK@1Mbps，DQPSK@2Mbps，and CCK@5.5/11MbpsMIMO-OFDM：BPSK，QPSK，16QAM ，64QAM，256QAM and1024QAMOFDMAReceive Sensitivity11b：-96dBm（1Mbps），-93dBm（5Mbps），-89dBm（11Mbps）11a/g：-91dBm（6Mbps），-85dBm（24Mbps），-80dBm（36Mbps），-74dBm（54Mbps） 11n：-90dBm（MCS0），-70dBm（MCS7），-89dBm（MCS8），-68dBm（MCS15）11ac：20MHz：-88dBm（MCS0）, -63dBm（MCS9）11ac：40MHz：-85dBm（MCS0）, -60dBm（MCS9）11ac：80MHz：-85dBm（MCS0）, -60dBm（MCS9）11ax：80MHz：-82dBm（MCS0）, -57dBm（MCS9）,-52dBm（MCS11）Maximum Transmit Power5.725～5.850GHz：≤20dBm (EIRP)5.150～5.250GHz：≤20dBm (EIRP)2.4～2.4835GHz：≤20dBm (EIRP)Adjustable Power1dBm
Dimensions
194mm×194mm×35mm (excluding mounting kits)
Weight
0.56kg (excluding mounting kits)Service
Ports

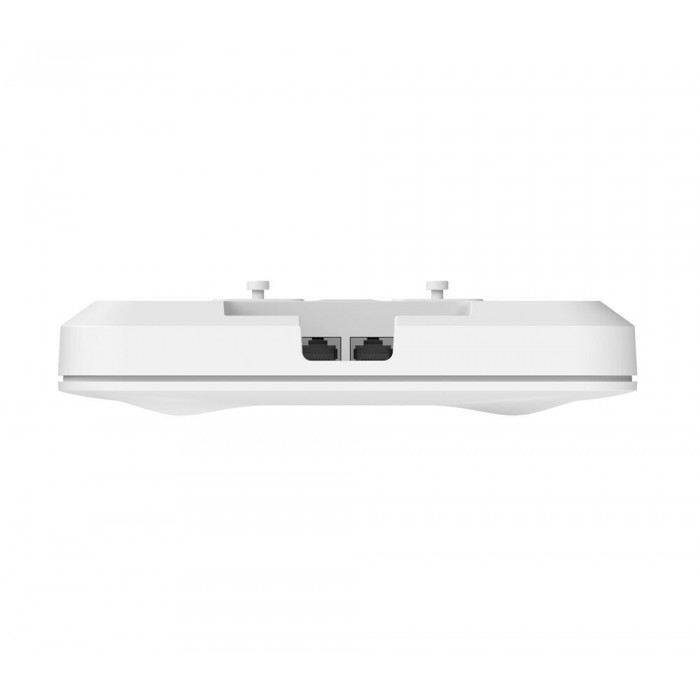

2 10/100/1000Base-T Ethernet ports, PoE/LAN1 port supports PoEManagement PortNALED IndicatorSingle indicator (green light)Power SupplyLocal power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory)802.3af/802.3at PoEPower Consumption≤ 15.3WEnvironmentOperating temperature: 0°C～40°C
Storage
temperature: -40°C～70°COperating humidity: 5％～95％（non-condensing）
Storage
humidity: 5％～95％（non-condensing）InstallationCeiling/wall-mountableSafety StandardGB4943, IEC 62368-1EMC StandardGB9254，EN301 489，EN50155，EN50121，EN55032，EN61000，EN55035Vibration StandardIEC61373Radio StandardEN300 328, EN301 893MTBF>400000HSoftware
Features
Operating ModeAP mode and routing modeWLANMaximum number of clients: 512Recommended number of clients: 100Up to 8 SSIDsSupport SSID hidingConfiguring the authentication mode, encryption mechanism, and VLAN attributes for each SSIDSSID-based and radio-based STA limitSupport Layer 2 user isolationRoamingSupport Layer 2 and Layer 3 roamingSecuritySupport PSK authenticationSupport static blacklist and whitelistSupport WPA (TKIP), WPA2 (AES), and WPA-PSK data encryptionRoutingSupport static IP address, DHCP, PPPoE Dial UpManagement and maintenanceSupport unified networking of all network equipmentSupport local or remote management with Ruijie Cloud appSupport local management with webSupport remote management with Ruijie Cloud platformPlatform management featuresAutomatic RF adjustment via the platformUnified configuration via the platformUnified monitoring via the platform
