Description
Standards• IEEE 802.11b/g/n on 2.4 GHz• IEEE 802.11a/n/ac Wave 2 on 5 GHz
Processor
• Qualcomm® 717 MHz Quad-Core
CPU
• ARM Cortex A7Antenna• 2 x 2.4 GHz: 4 dBi• 2 x 5 GHz: 5 dBi• Integrated Omni-Directional AntennaPhysical Interface• 1 x 10/100/1000 Mbps Ethernet Uplink Port (back plate)• 2 x 10/100/1000 Mbps Ethernet Switched
Ports
(client ports)• - Port 1 (PSE) 13W PoE (requires 802.3at power source)• 1 x Reset Button• 1 x DC JackLED Indicators• 1 x Multi- color LED for following behavior• - Power up• - Cloud connecting• - Disconnected
Power Source
• Power-over-Ethernet: 802.3af/at Input• - 802.3af Output w/ 802.3at Input• IEEE 802.11e Compliant Source• DC Jack: 12V/ 48VMaximum Power Consumption• 12W
Wireless
& Radio Specifications• Dual-Radio Concurrent 2.4 GHz & 5 GHzOperation Modes• AP, AP Mesh, MeshFrequency Radio• 2.4 GHz: 2400 MHz ~ 2482 MHz• 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHzTransmit Power• Up to 17 dBm on 2.4 GHz• Up to 17 dBm on 5 GHzTx Beamforming (TxBF)• Radio Chains/Spatial Stream• 2x2:2SU-MIMO• Two (2) spatial stream Single User (SU) MIMO for up to 400 Mbps wireless data rate with VHT40 bandwidth to a 2x2 wireless device under the 2.4GHz radio.• Two (2) spatial stream Single User (SU) MIMO for up to 867 Mbps wireless data rate with VHT80 to a 2x2 wireless device under the 5GHz radio.MU-MIMO• Two (2) Spatial Stream MU-MIMO up to 867 Mbps to two (2) 1x1 wireless devices simultaneouslySupported Data Rates (Mbps):• 2.4 GHz: Max 400• 5 GHz: Max 867• 802.11b: 1, 2, 5.5, 11• 802.11a/g: 6, 9, 12, 18, 36, 48, 54• 802.11n: 6.5 to 400 Mbps (MCS0 to MCS15) (Additional 25% bandwidth when enabling 256-QAM under HT40)• 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)Supported Radio Technologies• 802.11b: Direct-Sequence Spread Spectrum (DSSS)• 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)• 802.11n/ac: 2x2 MIMO with 2 StreamsChannelization7 802.11ac Supports Very High Throughput (VHT)—VHT 20/40/80 MHz• 802.11n Supports High Throughput (HT)—HT 20/40 MHz• 802.11n Supports High Throughput (HT) Under the 2.4 GHz Radio—HT 40 MHz (256-QAM)• 802.11n/ac Packet Aggregation: A-MPDU, A-SPDUSupported Modulation• 802.11b: BPSK, QPSK, CCK• 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM• 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAMManagement• Multiple BSSID• 8 SSIDs for both 2.4GHz and 5GHz radiosVLAN Tagging• Supports 802.1q SSID-to-VLAN Tagging• Cross-Band VLAN Pass-Through• Management VLANSpanning Tree• Supports 802.1d Spanning Tree ProtocolQoS (Quality of Service)• Complaint with IEEE 802.11e Standard• WMMSNMP• v1, v2c, v3MIB• I/II, Private MIB
Wireless
Security• WPA2-PSK• WPA2-Enterprise• Hide SSID in Beacons• MAC Address Filtering, Up to 32 MACs per SSID•
Wireless
STA (Client) Connected List• SSH Tunnel• Client IsolationEnvironmental & Physical• Operating: 32F~104F (0 C~40 C)•
Storage
: -40F~176 F (-30 C~80 C)Humidity (non-condensing)• Operating: 90% or less•
Storage
: 90% or lessDevice
Dimensions
&
Weight
s• ECW115 Device•
Weight
: .80 lbs. (.363 Kg)• 5.5” 140(W) x 3.5” 90(L) x 1.6” 40(H) mmPackaging•
Weight
: .86 lbs. (.390 Kg)• Length: 5.75” (146 mm)•
Width
: 4.85” (123.2 mm)•
Height

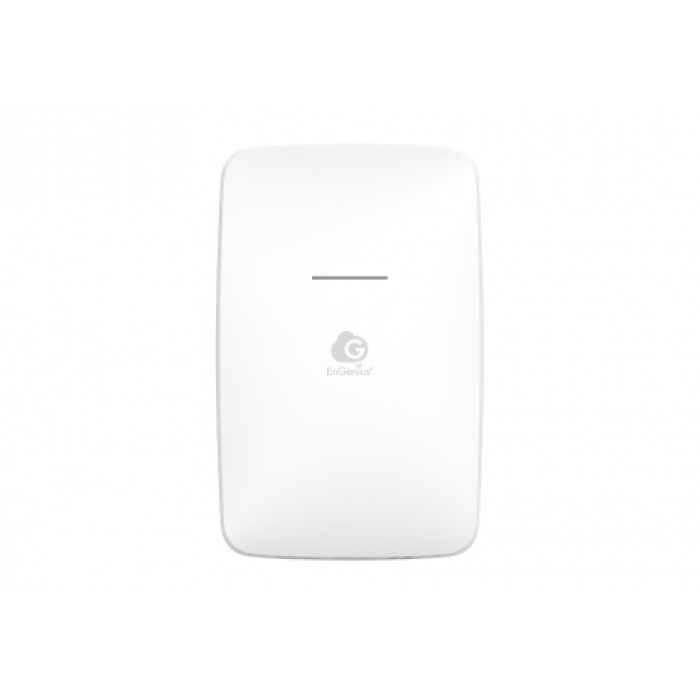

: 2.75” (69.9 mm)Package Contents• 1 - ECW115 Cloud Managed Indoor Access Point• 1 - Ceiling and Wall Mount Screw Kits• 2 - Junction-plates (tall/short)• 1 - Quick Installation GuideCertifications• FCC• CE• IC
Warranty
• 1 YearGTIN Number•4713361935312
