Asus

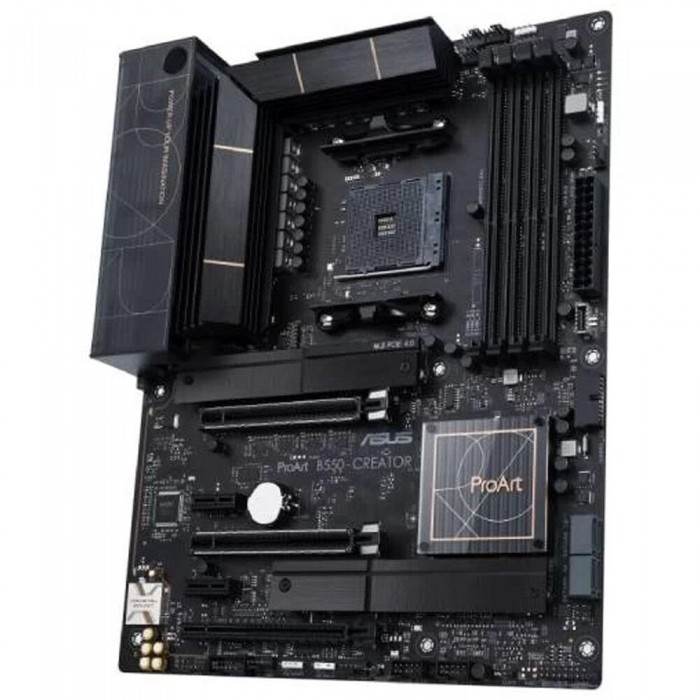

PROART B550-CREATORPart Number90MB17L0-M0EAY0

AMD Ryzen™ 5000

/ 5000 G-

/ 4000 G-

/ 3000

Desktop

sChipsetAMD B550 Chipset

AMD Ryzen™ 5000

/ 3000

Desktop

sDDR44866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered

AMD RyzenTM 4000 G-

sDDR45100(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered

OptiMem IIDual Channel

ArchitectureECC

(ECC mode) support varies by

.

s1 x HDMI™ 2.1(4K@60HZ)2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support

Port 1.2/1.4 and Thunderbolt™ video outputsOutput at TBT4_E1 and TBT4_E2, the USB Type-C® ports right under RJ45 ports, each requires a USB-C to

Port adapter cable.

s specifications may vary between

typesExpansion SlotsAMD Ryzen™ 5000

/ 3000

Desktop

s2 x PCIe 4.0 x16 (x16 or dual x8)*AMD RyzenTM 4000 G-

2 x PCIe 3.0 x16 (x16 or dual x8)*AMD B550 Chipset1 x PCIe 3.0 x16 slot (supports x4 mode)2 x PCIe 3.0 x1 slots

AMD Ryzen™ 5000

/ 3000

Desktop

s :M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)AMD RyzenTM 4000 G-

:M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)AMD B550 ChipsetM.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)4 x SATA 6Gb/s portsSupports RAID 0, 1, 10Ethernet2 x Intel® I225-V 2.5Gb EthernetASUS LANGuardUSBRear USB:Total 8 ports2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support4 x USB 3.2 Gen 2 port(s) (4 x Type-A)2 x USB 2.0 port(s) (2 x Type-A)Front USB:Total 7 ports1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®)1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 portsAudioInternal audio Amplifier to enhance the highest quality sound for headphone and speakersSupports: Jack-detection, Multi-streaming, Front Panel Jack-retaskingHigh quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)Supports up to 32-Bit/192 kHz playbackAudio

:Power pre-regulator reduces power input noise to ensure consistent performanceRear optical S/PDIF out portPremium Japanese audio capacitorsDedicated audio PCB layersAudio coverUnique de-pop circuitDue to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround

audioBack I/O

2 x Thunderbolt™ 4 USB Type-C® port(s)4 x USB 3.2 Gen 2 port(s) (4 x Type-A)2 x USB 2.0 port(s) (2 x Type-A)1 x

Port (Input only)1 x HDMI™ port2 x Intel® I225-V 2.5Gb Ethernet ports5 x Audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™ button1 x PS/2 Keyboard/Mouse combo portInternal I/O ConnectorsFan and Cooling related:1 x 4-pin

Fan header(s)1 x 4-pin

OPT Fan header(s)1 x 4-pin AIO Pump header(s)4 x 4-pin Chassis Fan header(s)Power related:1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connector

related:2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB:1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®)1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 portsMiscellaneous:2 x AURA Addressable Gen 2 header(s)2 x AURA RGB header(s)1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x Speaker header1 x SPI TPM header (14-1pin)1 x 20-5 pin System Panel header1 x Thermal Sensor headerBIOS256 Mb Flash ROM, UEFI AMI BIOS

Windows® 11 64-bit, Windows® 10 64-bit

ATX30.5cm x 24.4cm
